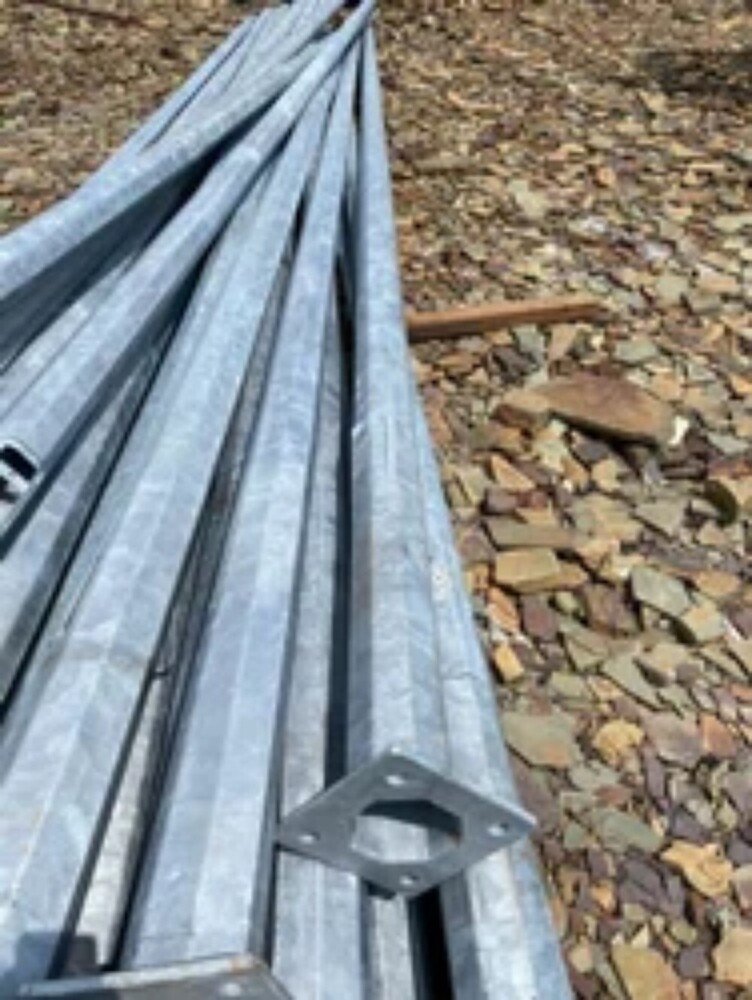

Conical Poles

Name: Conical Poles
Brand: UNIVERSAL SPORTS LIGHTING
Price: 6500.0 INR
Availability: InStock

6500.0 INR/Piece

Get a Price/Quote

Product Details:

Power High mast and street lighting compatible, up to 400 Watt fittings
Head Diameter 60 mm to 120 mm (customizable)
Size Customized as per requirement
Dimension (L*W*H) As per design (length corresponds to pole height)
Beam Tapered/conical (not light beam; refers to pole geometry)
Diameter Bottom: 120 mm to 250 mm, Top: 60 mm to 120 mm
Product Type Conical Pole
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Conical Poles Price And Quantity

Minimum Order Quantity 48 Piece
Price 6500.0 INR/Piece

Lifespan Up to 25 years with proper maintenance
Load Bearing Capacity Appropriate for single or multiple luminaires
Application Suitable for highways, parking lots, stadiums, airports, commercial complexes
Finish Anti-corrosive, Paint/Polyester Powder Coated finish available on request
Welding Standard IS 9595/ISO 20685 compliant
Base Plate Thickness 12 mm to 20 mm (customized)
Corrosion Protection Hot Dip Galvanized as per IS 2629/BS EN ISO 1461
Mounting Type Surface/Bolted
Wind Resistance Designed for Wind speed up to 180 km/h

Conical Poles Product Specifications

Usage Street lighting, pathway lighting, public area illumination
Voltage 220-240V AC
Protection Level Galvanized anti-corrosion coating
Head Diameter 60 mm to 120 mm (customizable)
Material Hot Dip Galvanized Steel
Size Customized as per requirement
Power High mast and street lighting compatible, up to 400 Watt fittings
Color Temperature Dependent on lamp source, typically 3000K-6500K
Efficiency High efficiency, suitable for LED and conventional luminaires
Product Type Conical Pole
Height 6 to 16 meters
Diameter Bottom: 120 mm to 250 mm, Top: 60 mm to 120 mm
Beam Tapered/conical (not light beam; refers to pole geometry)
IP Rating IP65/66 (with compatible luminaire fixtures)
Power Supply AC 220-240V
Light Source Suitable for LED, sodium, mercury vapor, MH lamps
Dimension (L*W*H) As per design (length corresponds to pole height)
Color Standard Grey, customizable

Lifespan Up to 25 years with proper maintenance
Load Bearing Capacity Appropriate for single or multiple luminaires
Application Suitable for highways, parking lots, stadiums, airports, commercial complexes
Finish Anti-corrosive, Paint/Polyester Powder Coated finish available on request
Welding Standard IS 9595/ISO 20685 compliant
Base Plate Thickness 12 mm to 20 mm (customized)
Corrosion Protection Hot Dip Galvanized as per IS 2629/BS EN ISO 1461
Mounting Type Surface/Bolted
Wind Resistance Designed for Wind speed up to 180 km/h

Conical Poles Trade Information

FOB Port NEW DELHI
Supply Ability 1 Piece Per Day
Delivery Time 1 Week

Product Description

Conical Poles Description

Conical poles are structures that taper from a wider base to a narrower top, forming a cone-like shape. Key features include:

Structural stability: Provides strength and durability.

Wind resistance: Conical shape can reduce wind load.

Aesthetic appeal: Sleek, modern design.

These poles are used in various applications, such as street lighting, flagpoles, or architectural features.Conical Poles Description

Conical poles are structures that taper from a wider base to a narrower top, forming a cone-like shape. Key features include:

Structural stability: Provides strength and durability.

Wind resistance: Conical shape can reduce wind load.

Aesthetic appeal: Sleek, modern design.

These poles are used in various applications, such as street lighting, flagpoles, or architectural features.
